Autel MaxiSYS MSOAK Oscilloscope Accessory Kit

Autel MaxiSYS MSOAK Oscilloscope Accessory Kit

Regular price $349.00 USD
Regular price $440.00 USD Sale price $349.00 USD
Sale Sold out



Autel MSOAK Oscilloscope Accessory Kit Work with the MaxiFlash VCMI Included with Autel Ultra, MS919 and MP408

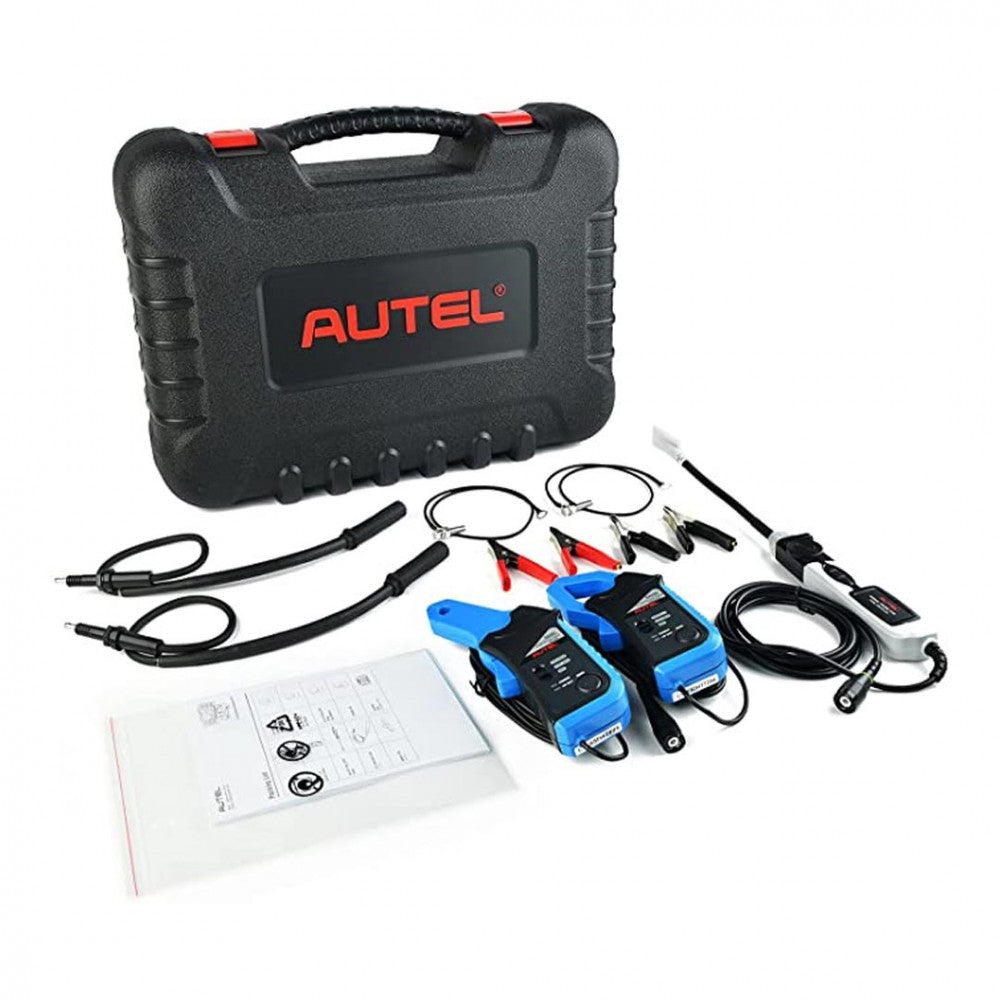

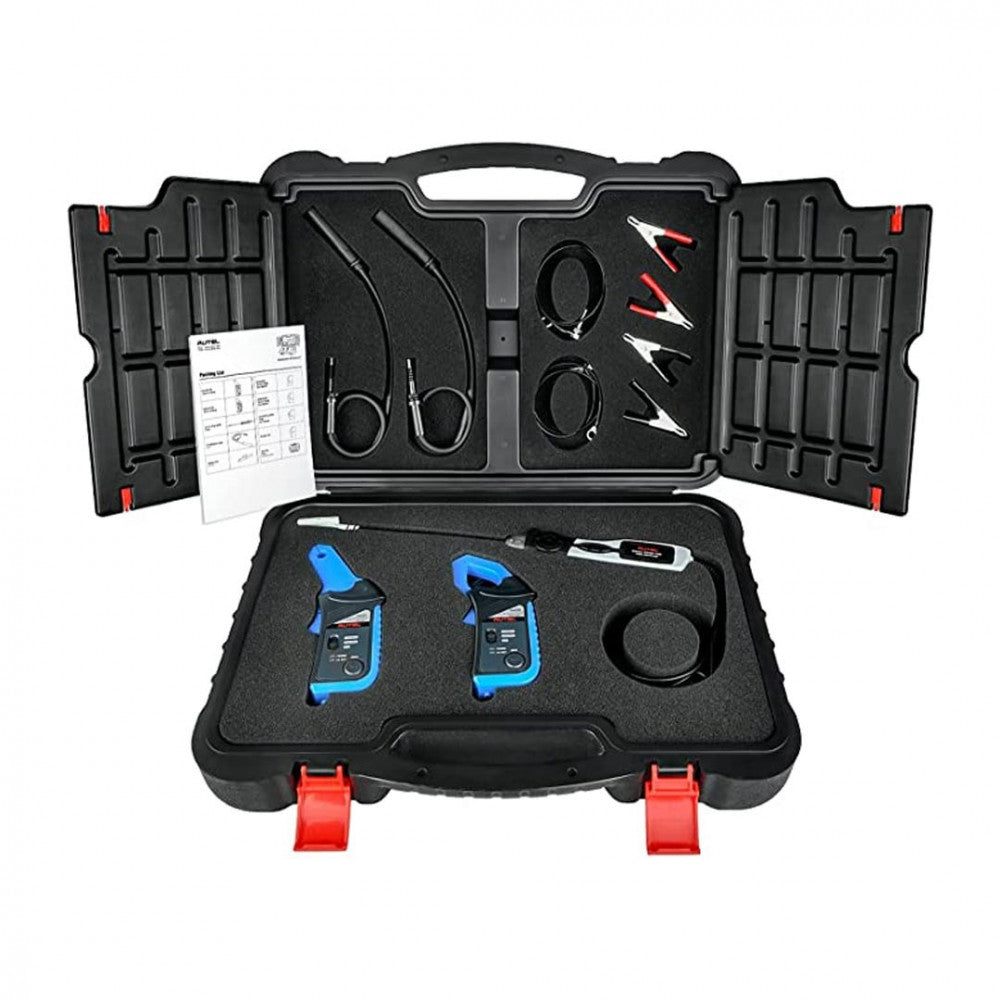

The Autel MSOAK, compatible with the MaxiFlash VCMI included with the MSUltra and MS919, and the MP408 4-channel oscilloscope (sold separately), includes the 65A AC/DC Current Clamp, 650A AC/DC Current Clamp, Coil On Plug Probe, HT Extension Lead (2pcs) and Battery Clip (2pcs), within a blow-molded carrying case. To enable screen reader support, press Ctrl+Alt+Z To learn about keyboard shortcuts, press Ctrl+slash

Features:
1. Work with the MaxiFlash VCMI Included with Autel Ultra, MS919 and MP408
2. Support 65A/650A AC/DC Clamp HT Extension Lead Battery Clip with Carrying Case
3. Includes 65A AC/DC Current Clamp, 650A AC/DC Current Clamp
4. Includes Coil On Plug Probe, HT Extension Lead (2pcs) and Battery Clip (2pcs)
5. With Blow-Molded Carrying Case

The Coil On Plug Probe

It can catch the ignition waveform of automobile engine easily. The ignition waveform is a window, through which we can see what happened in the engine combustion chambers. It can be used with normal oscilloscope. Special anti-interference design, high accuracy of measurement. With highlight LED, can be arbitrary curved. Use it to check: ignition plug status; fuel injector; leakproofness of air cylinder; oil pollution; carbon deposition; storage battery.

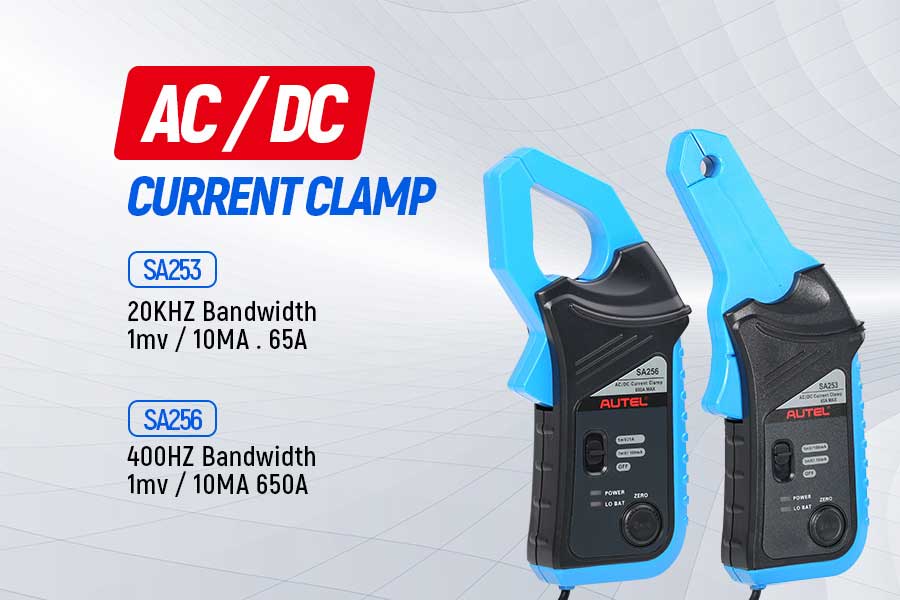

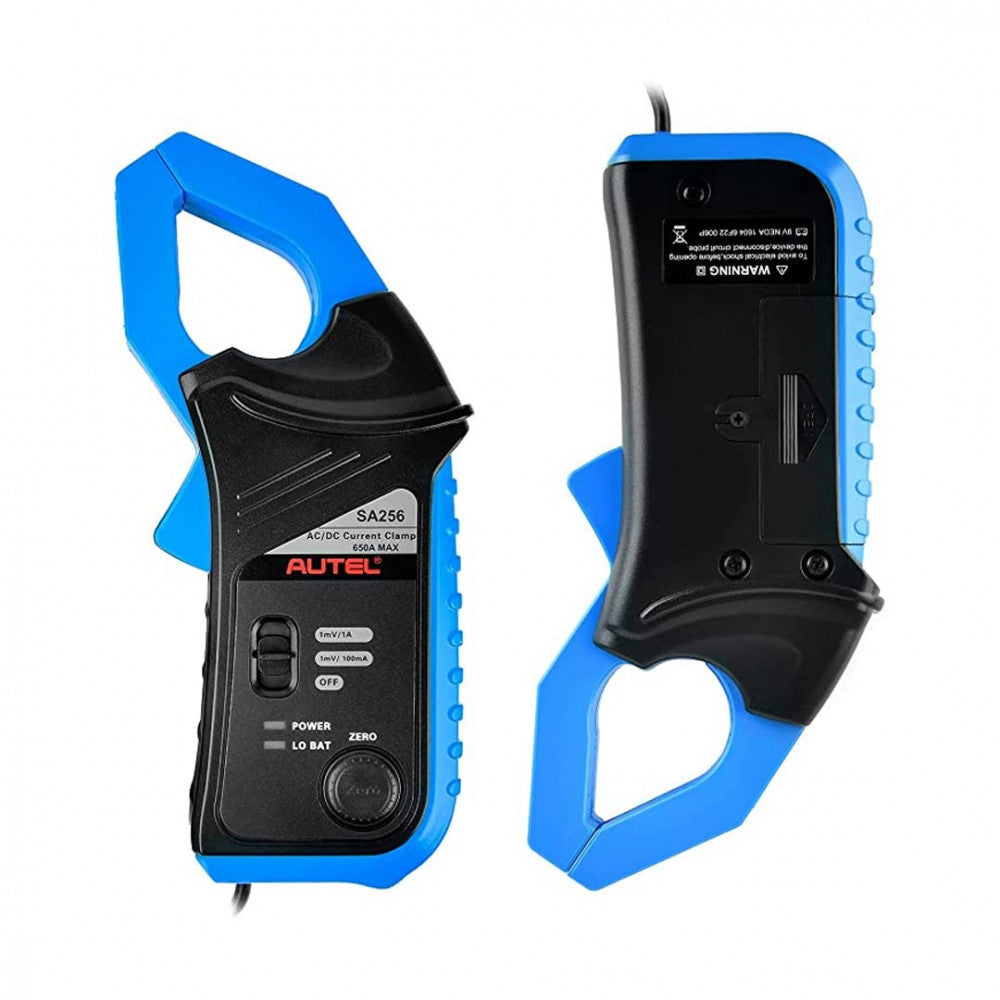

65A AC/DC CURRENT CLAMP & 650A AC/DC CURRENT CLAMP

When measuring AC or DC with the current clamp, you can connect it with a multimeter or an oscilloscope to directly read the current value without physical contact with the conductor. The current clamp measures a maximum current of 65A with a frequency up to 20 KHz. It works with jaws that open to allow clamping around an electrical conductor. And the 650A AC/DC current clamp measures a maximum current of 650A with a frequency up to 400 KHz.

NewAutel MSOAK Oscilloscope Accessory Kit compatible with the MaxiFlash VCMI included with the MSUltra and MS919, and the MP408 4-channel oscilloscope

Functions:

The current clamp measures a maximum current of 65A with a frequency up to 20 KHz. It works with jaws that open to allow clamping around an electrical conductor. And the 650A AC/DC current clamp measures a maximum current of 650A with a frequency up to 400 KHz.

Coil on Plug Probe can catch the ignition waveform of automobile engine easily. The ignition waveform is a window, by which we can see what happened in the engine combustion chambers. It helps to determine whether the ignition plug needs to be replaced or cleaned

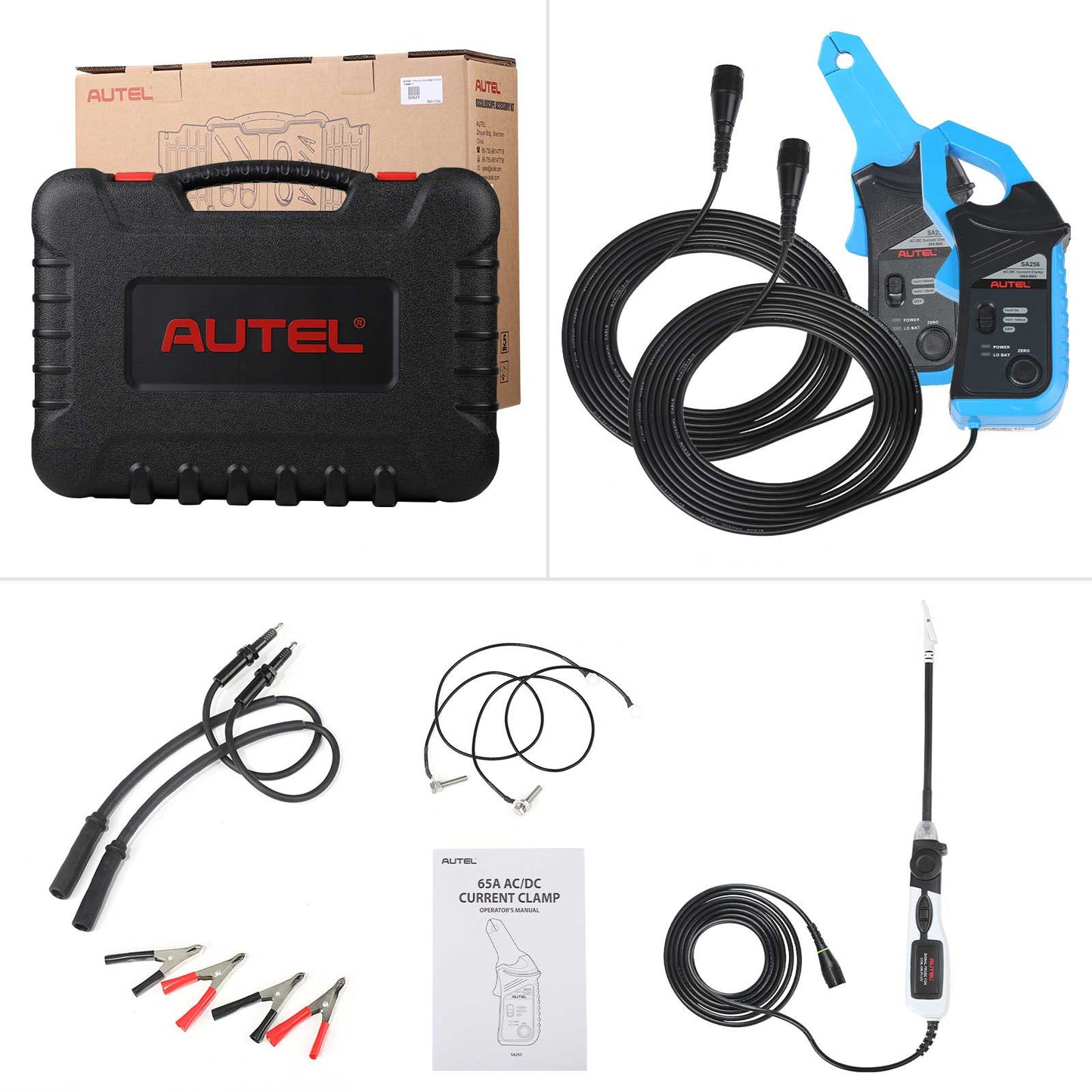

Autel MSOAK MaxiSys Package Content:

  • 1pc x 65A AC/DC Current Clamp
  • 1pc x 65A AC/DC Current Clamp User Manual
  • 1pc x 650A AC/DC Current Clamp
  • 1pc x 650A AC/DC Current Clamp User Manual
  • 1pc x Coil on Plug Probe
  • 1pc x Coil on Plug Probe User Manual
  • 2pcs x HT Extension Lead
  • 2pcs x Battery Clip
  • 1pc x Packing List
  • 1pc x Carrying Case
