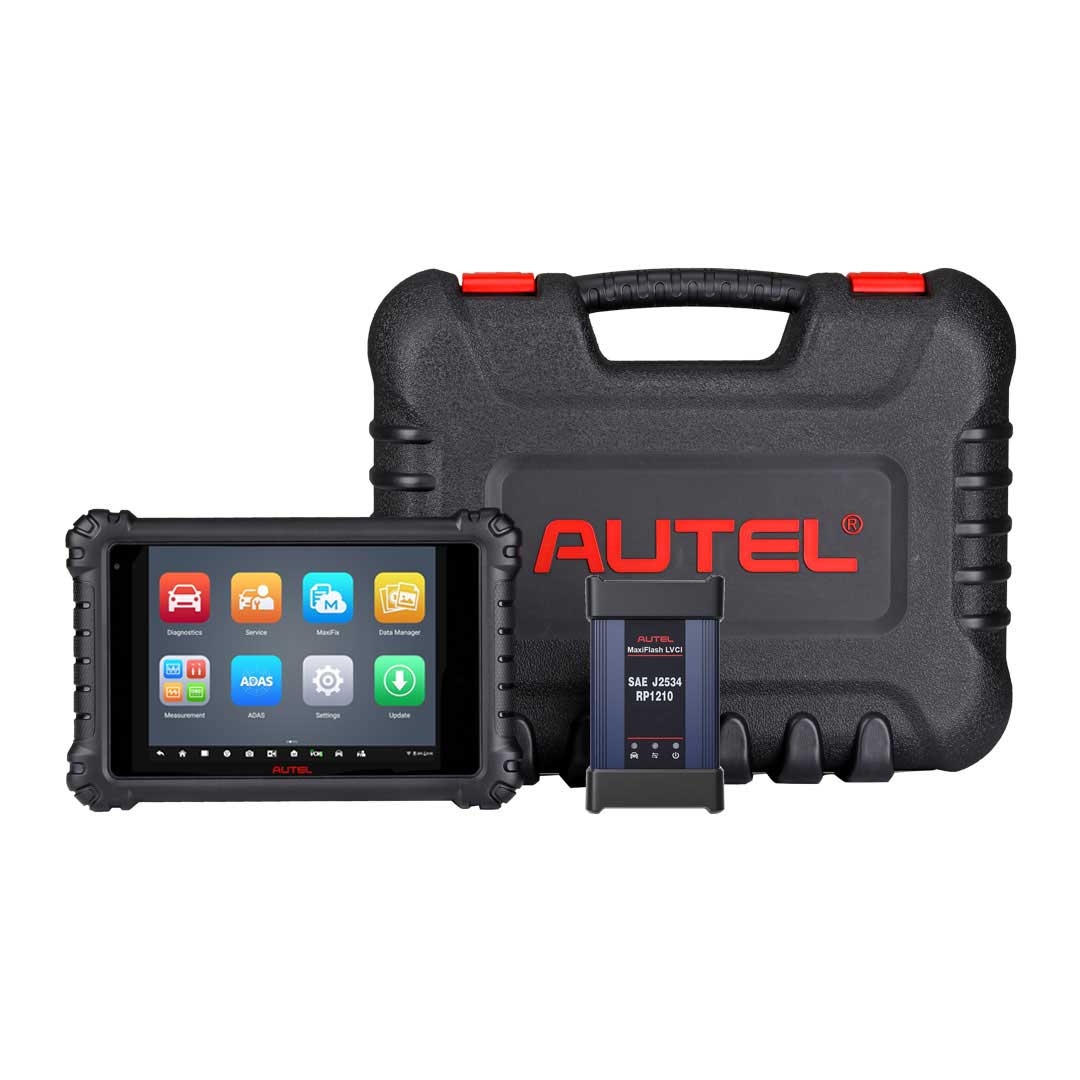

Autel MS908S3

Autel MS908S3

Regular price $1,399.00 USD
Regular price $1,450.00 USD Sale price $1,399.00 USD
Sale Sold out

Advanced Diagnostics System

MaxiSys MS908S3 is a full-function tool that provides information for diagnosing vehicles, identifying faults, and researching repairs. It features a powerful octa-core processor and 10.1-inch TFT-LCD capacitive touchscreen for swift diagnostics and optimum viewing. As an advanced diagnostics system, MaxiSys MS908S3 offers the best possible coverage of OE-level diagnostics to help you diagnose symptoms, codes, and other vehicle problems quickly and efficiently.

·10.1-inch high-resolution, responsive touchscreen display

·Android 10 operating system Octa-core processor, extremely fast and efficient navigation

·Extensive vehicle coverage for U.S., Asian, and European vehicle makes;take the lead in vehicle model and function coverage

·Exceptional OE-Level system coverage for all electronic systems

·Complete code, live data, ECU information, bi-directional active test, and special function capabilities

·Expansive 40-plus menu of service and maintenance tasks

·Supports the latest communication protocols, including DoIP and CAN FD

·AUTO SCAN 2.0 maximize diagnostics capabilities with faster all system scan

·Remote Expert capability: contract with experienced programmers and system experts; now supports Bluetooth headsets communication

·One-touch report sharing through QR codes, text messages, and emails

·One-touch support, get help from professional and technical personnel

Operating   System Android 10.0
Processor Octa-core Processor
Memory 4GB RAM &128GB On-board Memory
Display 10.1-inch LCD capacitive   touchscreen with 1920 x 1200 resolution
Connectivity Wi-Fi (802.11   a/b/g/n/ac)
USB     2.0 (2 USB TYPE-A ports and a Mini USB port)
BT   5.0 (BR/EDR + BLE)
SD   Card (Support up to 64GB)
Camera   (rear) 13 Megapixel
Sensors Gravity Accelerometer,   Ambient Light Sensor (ALS)
Audio   Input/Output Microphone
Dual   Speakers
3-band   or 4-band 3.5 mm Headset Jack
Power and   Battery 11600 mAh 3.85 V lithium-polymer battery
Charging   via 12 V DC power supply
Input   Voltage 12 V/3 A Adapter
Operating   Temp 0 to 50°C (32 to 122°F)
Storage   Temp  -10 to 60°C (14 to 140°F)
Dimensions(WXHX   D) 311.1 mm (12.25”) x   216.0 mm (8.50”) x 39.9 mm (1.57”)
Weight NW: 1.71 kg (3.77 lbs)
Protocols DoIP, CAN FD, PLC J2497,   ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can (GMLAN),   ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230,   SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAEJ2740   (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW   DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAEJ1850 PWM (Ford SCP),   SAE-J1850 VPW (GM Class2)
